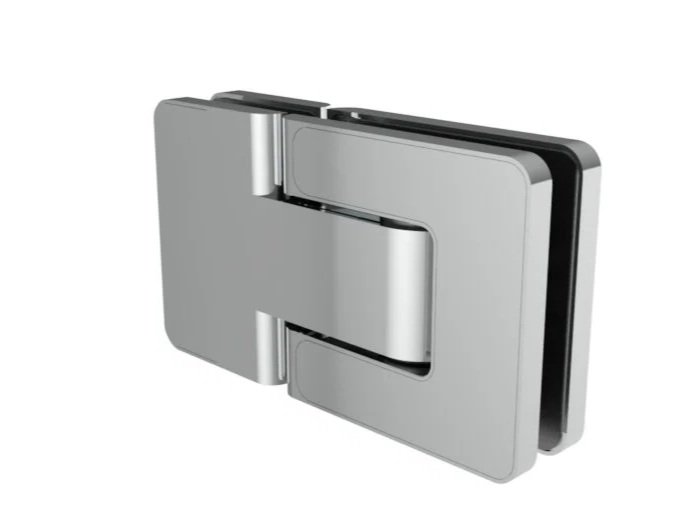

Agitus Hinge Collection

The double acting "pivoting" capabilities allow glass doors to automatically close to a center position.

  • Prices vary per model

    Agitus Mi starting at $636.00

    Agitus M starting at $746.00

    Agitus Li starting at $720.00

    Agituts L starting at $857.00

    Price is per hinge

    All prices are retail | standard 600 grit Brushed finish

  • Product Info. Agitus M/Mi

    Max. 110 Lbs. (per pair)

    Self closing at an opening angle of 40-50°

    Agitus M models screws are concealed using magnetic cover plates.

    suitable for glass up to 3/8”

    Ball-Bearing

    Floor stopper PT.7110.AN required

    Hinges in both direction [swing in or out]

    Made of V2A (304 grade) stainless steel 100% Made in Germany

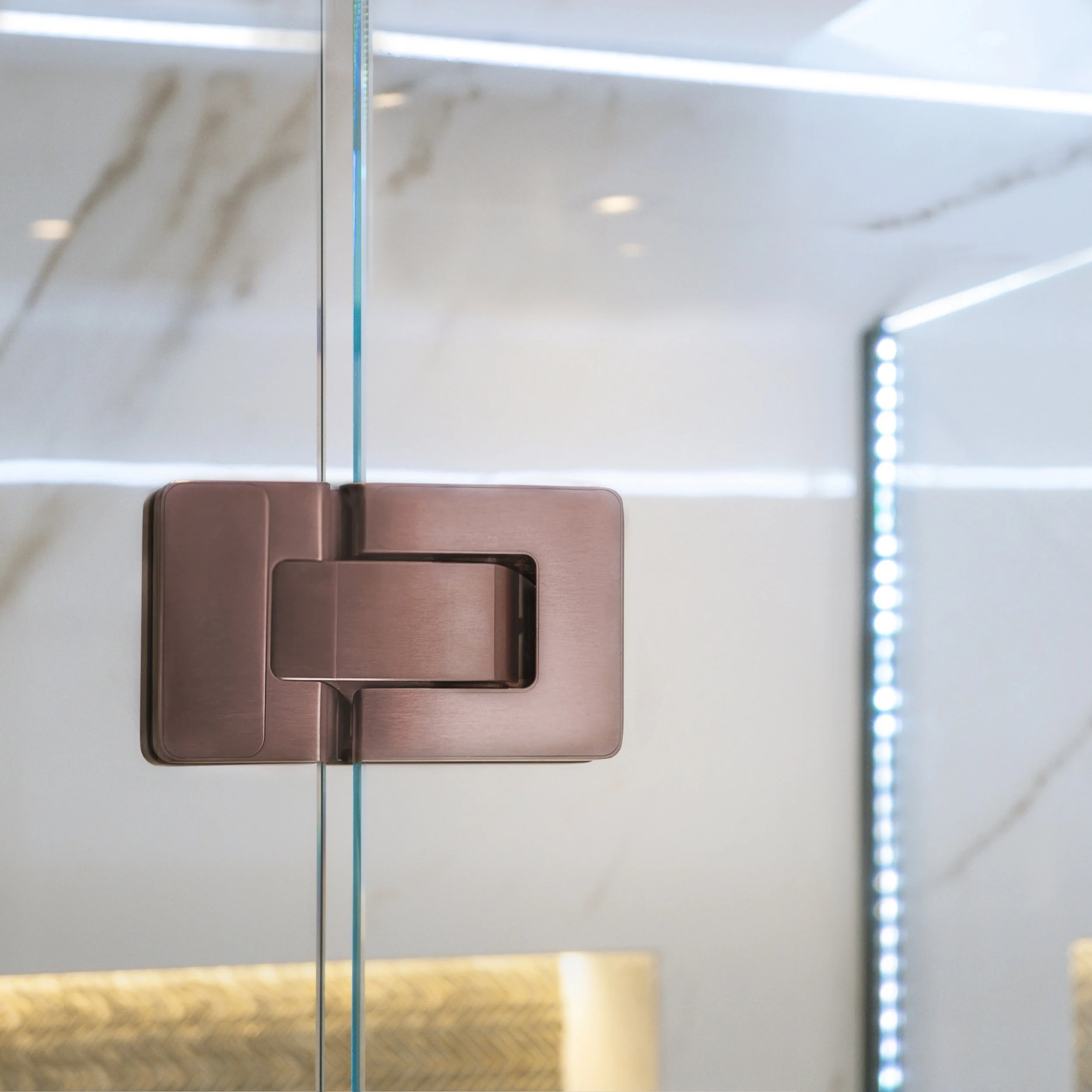

    Finishes available: Brushed 600 grit stainless steel, polished stainless steel, PVD colors, 24K gold plated, burnished

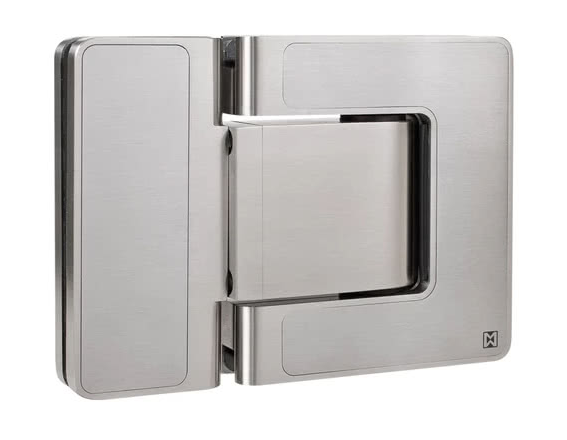

  • Product Info. Agitus L/Li

    Max. 165 Lbs. (per pair)

    Self closing at an opening angle of 80-85°

    Agitus L models screws are concealed using magnetic cover plates.

    suitable for glass up to 1/2"

    Ball-Bearing

    Floor stopper PT.7110.AN required

    Hinges in both direction [swing in or out]

    Made of V2A (304 grade) stainless steel 100% Made in Germany

    Finishes available: Brushed 600 grit stainless steel, polished stainless steel, PVD colors, 24K gold plated, burnished

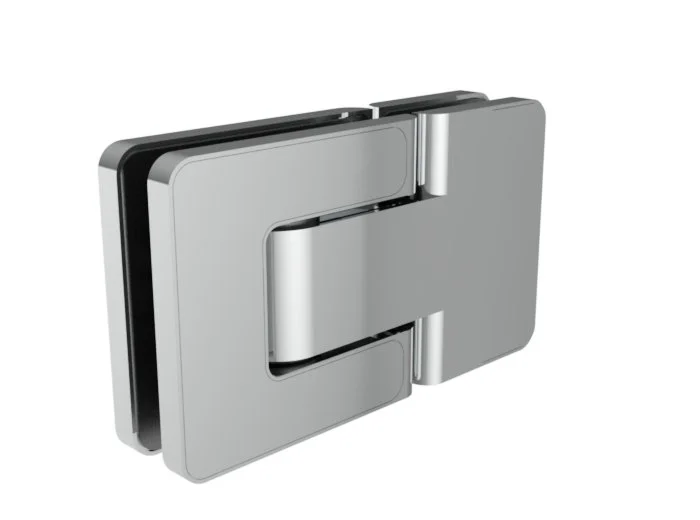

  • ST.7004.AR

    glass to glass

    2x Ø5/8” drilling [SB3]

    90° - 180° installations

    download spec

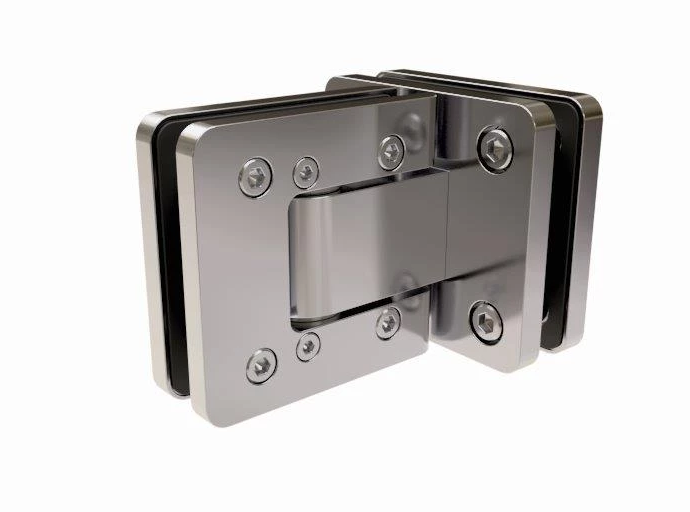

  • DU.3304.V

    glass to glass

    2× Ø3/4 /1” countersunk drilling [SB1]

    90° - 180° installations

    download spec

  • ST.7004.V

    glass to glass

    2x Ø5/8” drilling [SB3]

    90° / 180° installations

    download spec

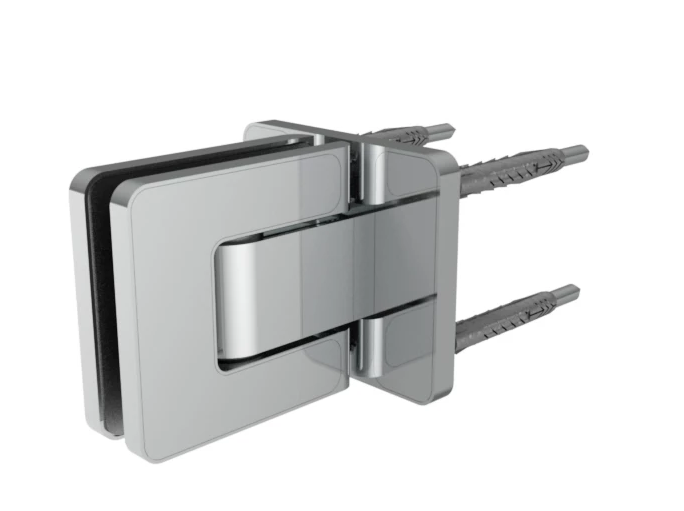

  • ST.7001.V

    glass to wall/ceiling/floor

    1× Ø5/8” drilling [SB3]

    90° installations

    download spec

  • ST.7001.AR

    glass to wall/ceiling/floor

    1× Ø5/8” drilling [SB3]

    90° installations

    download spec

  • DU.3321.PH

    glass to wall/ceiling/floor

    2× Ø3/4 /1” countersunk drilling [SB1]

    90° installations

    download spec

  • DU.3321.SK

    glass to wall/ceiling/floor

    2× Ø3/4 /1” countersunk drilling [SB1]

    90° installations

    download spec

  • PT.7110.AN

    To be used with All Agitus hinge models to keep the door from opening beyond 90°

    download spec

  • Magnetic Cover Plates

    Cover plates are removed using a provided suction cup and create a water tight seal concealing screws.
